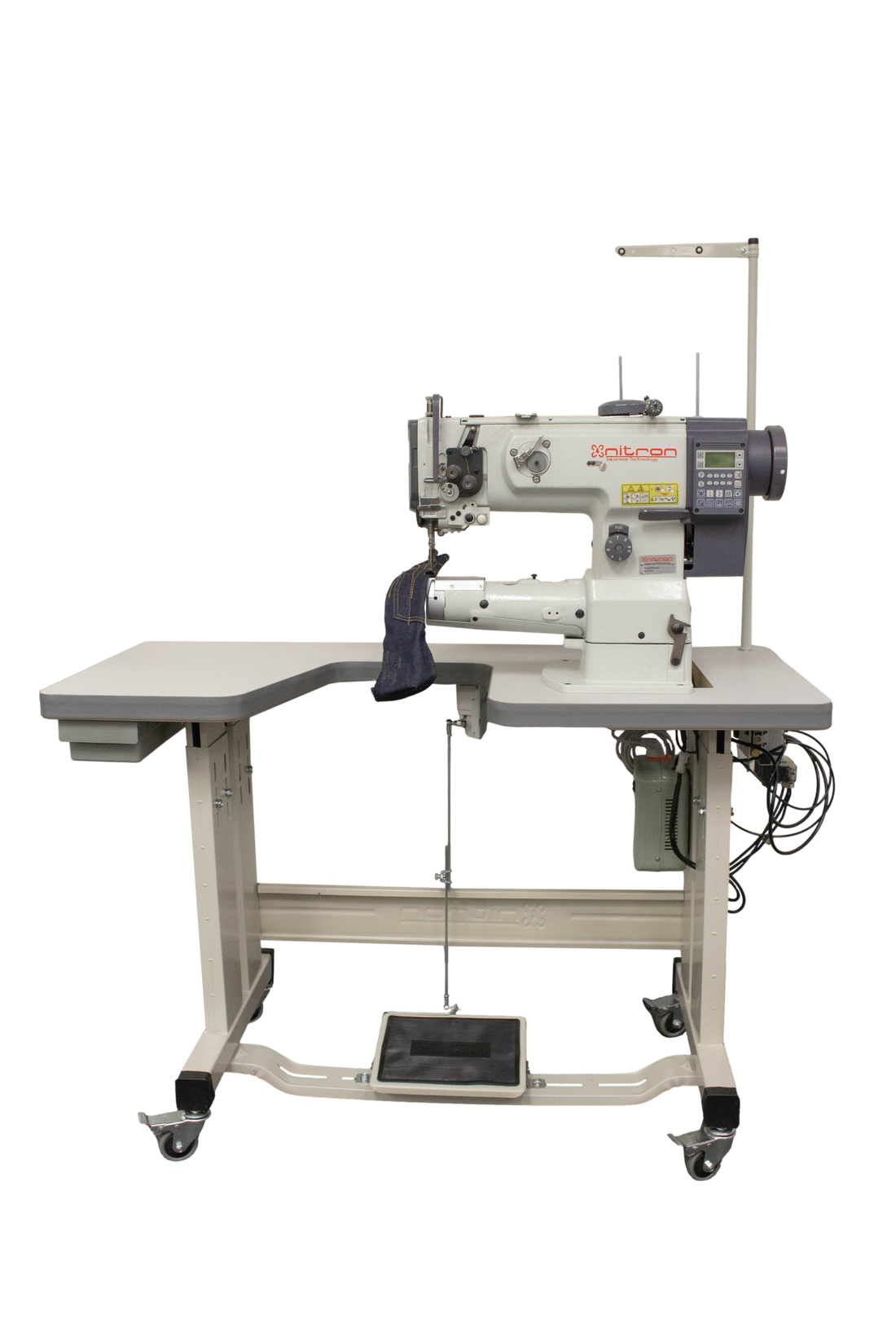

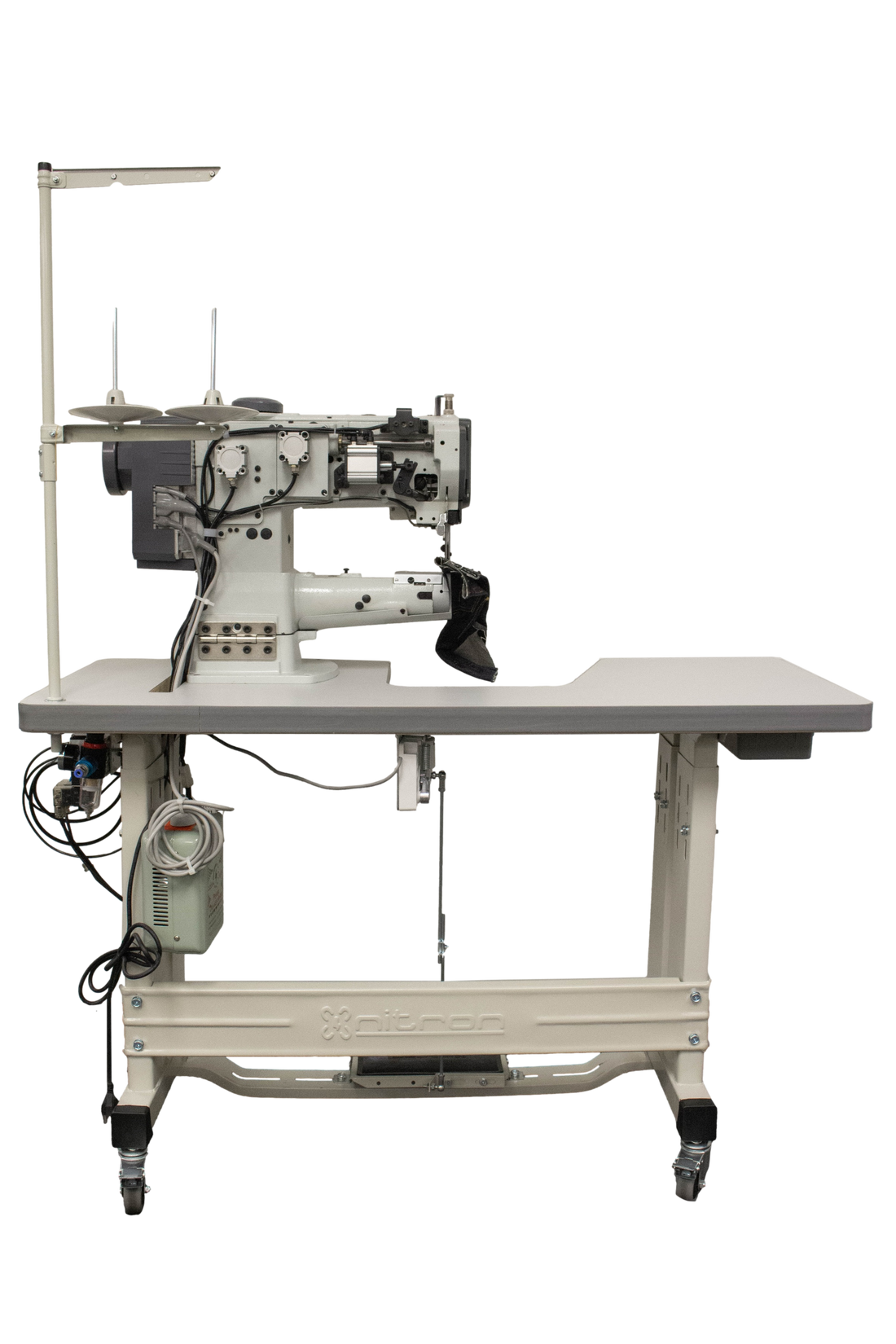

This compound feed sewing machine is designed with unique feed mechanisms, which make sewing of uneven and thick materials easy. Smooth, uniform and neat stitches are promised. The machine runs with speed and low noise thanks for its vertical axis rotating hook, sliding leer take-up and synchronized belt driven mechanisms. It is designed for sewing of shoes, caps, sofa and bag, etc, and specially for sewing cylindrical or arc products.
Specs:
| Model |
| GC263-D2T3 |
GC22263 |
GC2263V |
|
| Applications |
Medium and Heavy weight materials |
| Max Sewing Speed |
|
| Max stitch length |
6mm |
| Needle bar stroke |
36mm |
| Needle |
DP X17(nm125~nm180) 23# |
| Lubrication |
Oil wick |
| Rotating hook |
Vertical hook |
| Presser foot lift height |
9mm by hand, 16 mm by knee/lifter |
| Motor power |
| Servo motor |
370W clutch motor |
|
