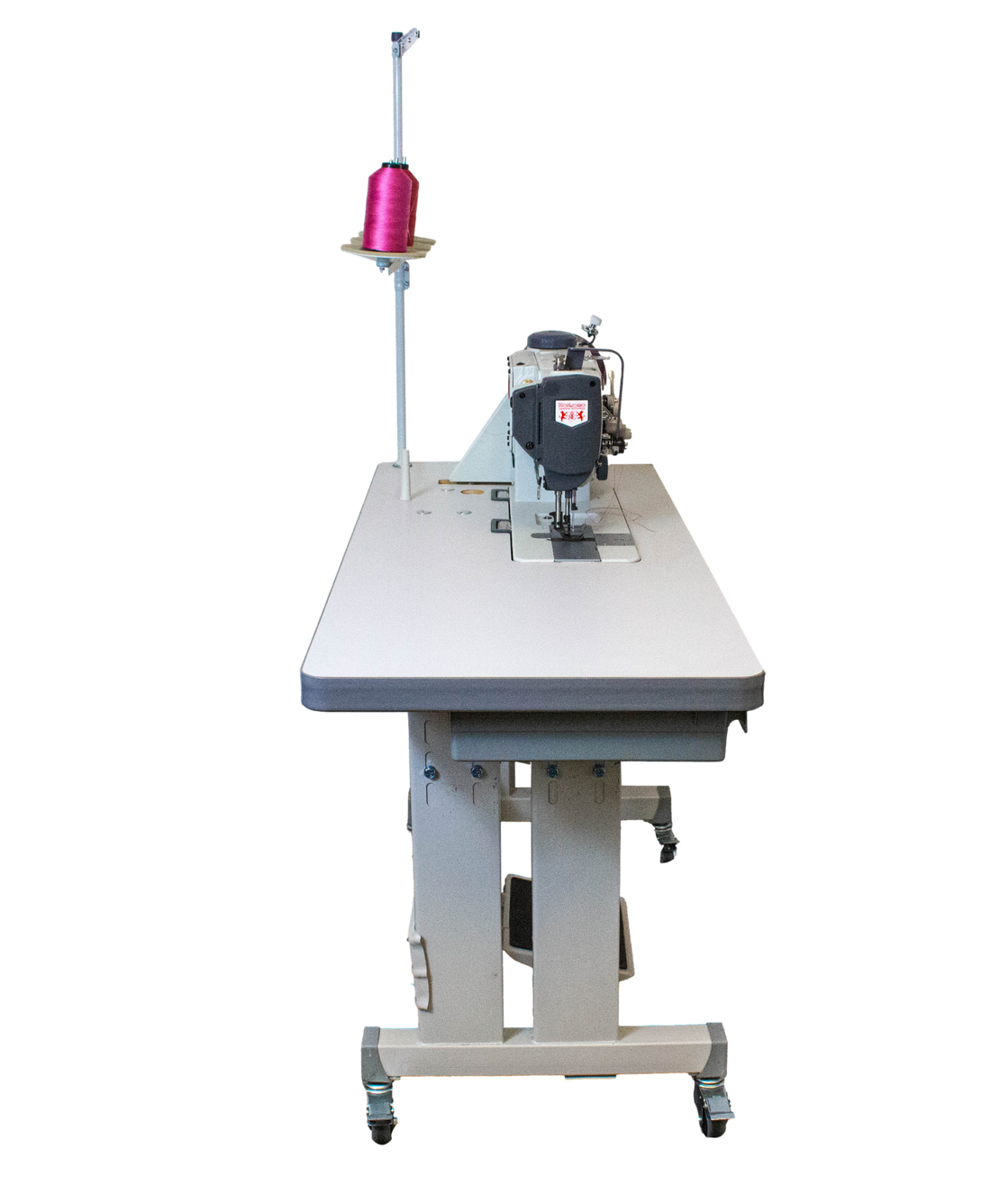

NT-1560 DOUBLE NEEDLE WALKING FOOT SEWING MACHINE W/ SERVO MOTOR

THIS COMPOUND FEED SEWING MACHINE IS DESIGNED WITH UNIQUE FEED MECHANISMS, WHICH MAKE SEWING OF UNEVEN AND THICK MATERIALS EASY. SMOOTH, UNIFORM, AND NEAT STITCHES ARE PROMISED. THE MACHINE RUNS WITH HIGH SPEED AND LOW NOISE THANKS TO ITS VERTICAL-AXIS ROTATING HOOK, SLIDING LEVEL TAKE-UP, AND SYNCHRONIZED BELT-DRIVEN MECHANISMS. IT IS DESIGNED FOR SEWING OF CAR SEATS, LEATHER BAGS, AND THE TENTS INDUSTRY

MAIN SPECIFICATIONS:

1. APPLICATIONS: MEDIUM AND HEAVY-WEIGHT MATERIALS
2. MAX SEWING SPEED: 2500 S.P.M
3. MAX STITCH LENGTH:9MM
4. NEEDLE BAR STROKE: 36MM
5. NEEDLE: DPX17(NM125~NM180) 24#
6. LUBRICATION: OIL WICK (ROTATING HOOK SELF-OILED)
7. ROTATING HOOK: SELF-OILED BIG ROTATING HOOK
8. PRESSER FOOT LIFT HEIGHT: 9MM (BY HAND), 16MM (BY KNEE)
9. MOTOR POWER: 370W
10. NEEDLE GAUGE: DEFAULT 6.4MM
