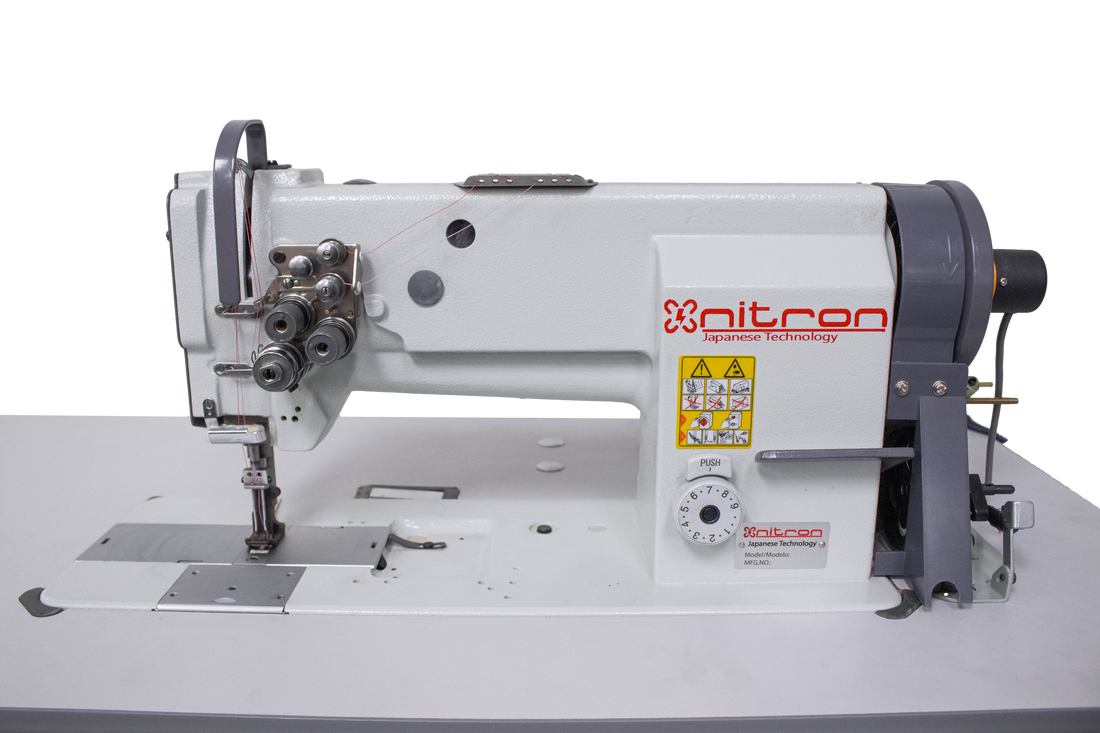

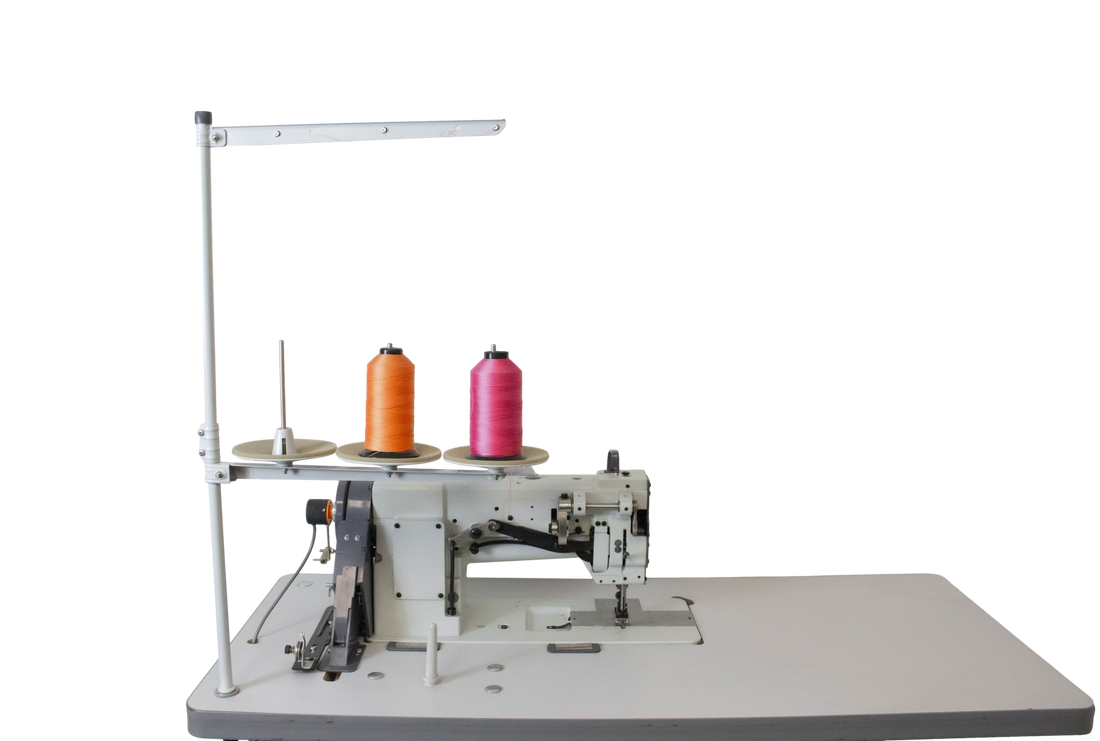

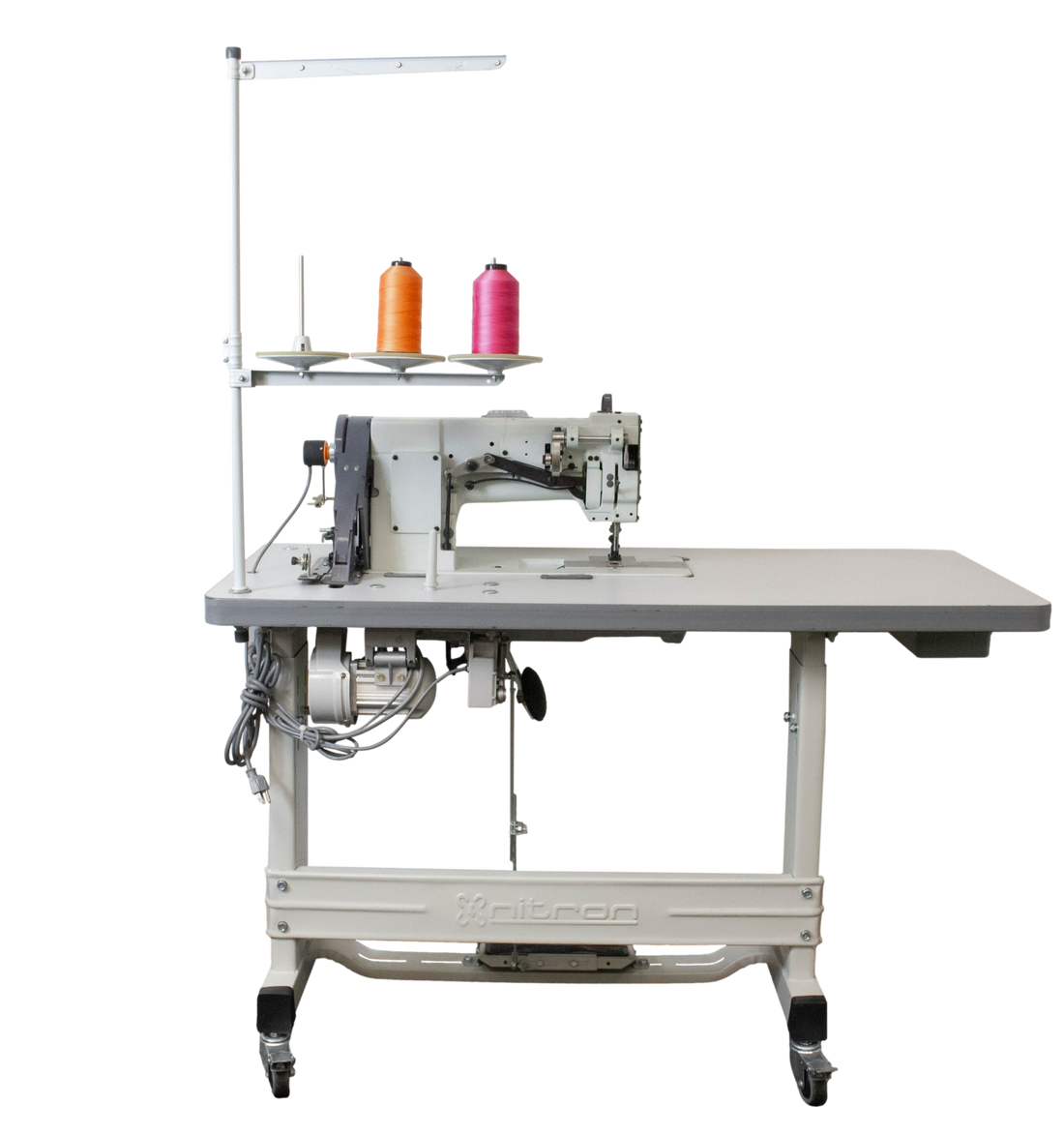

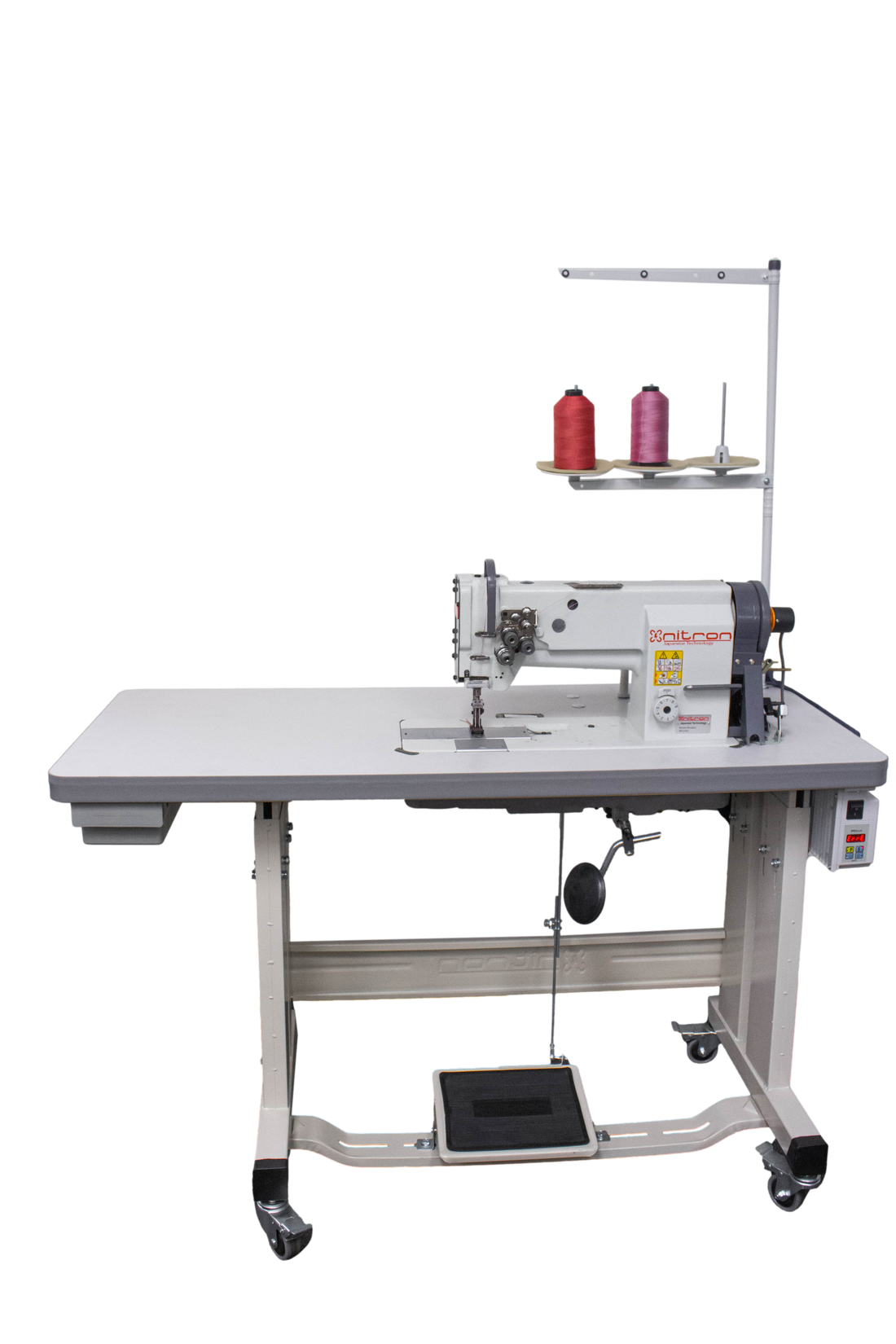

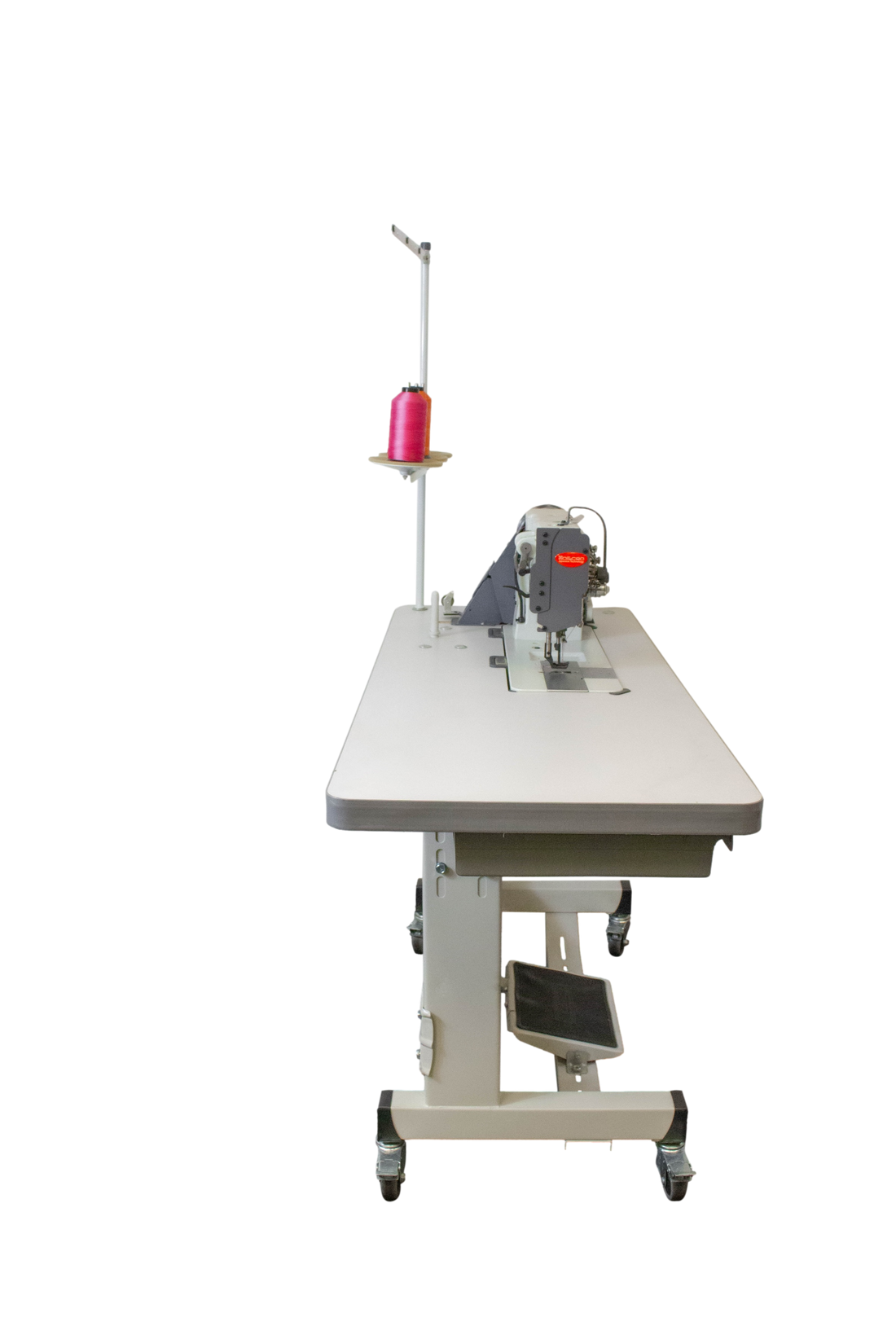

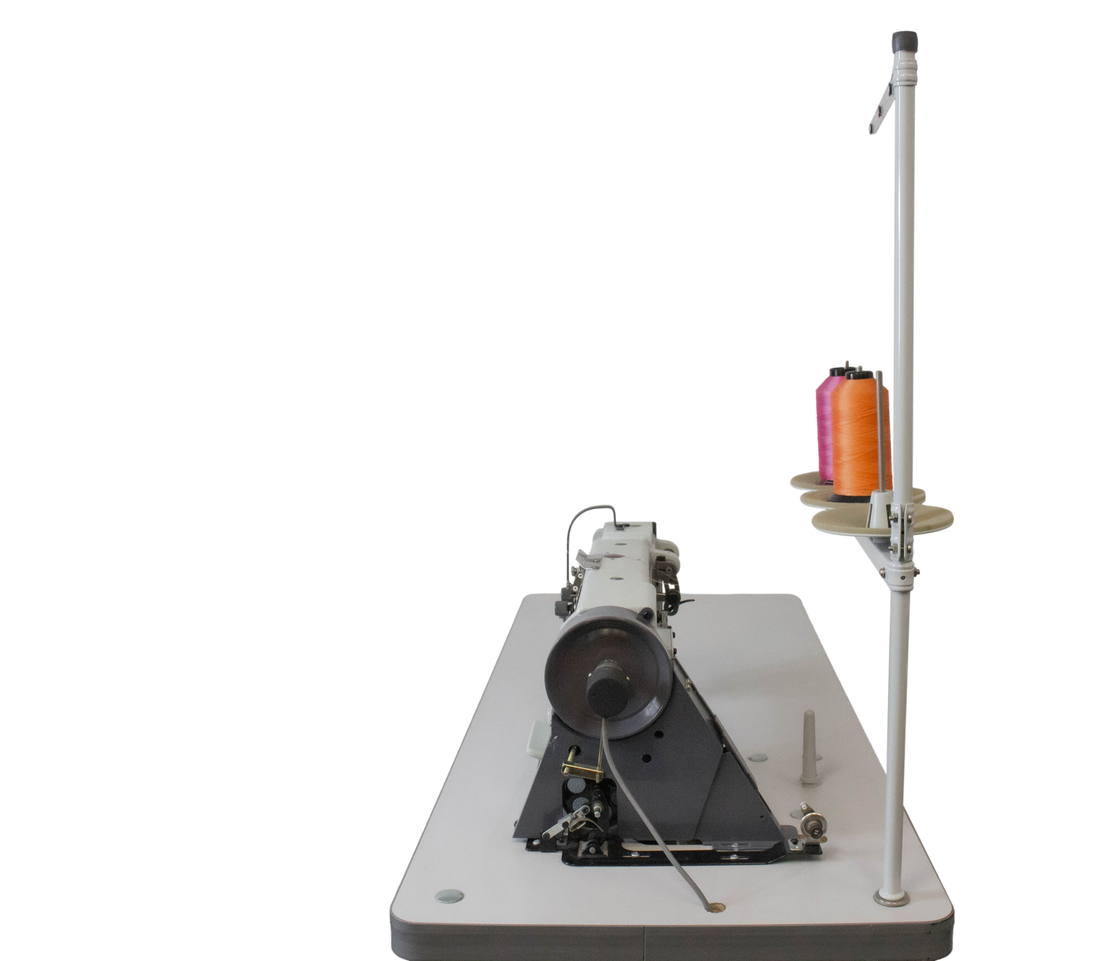

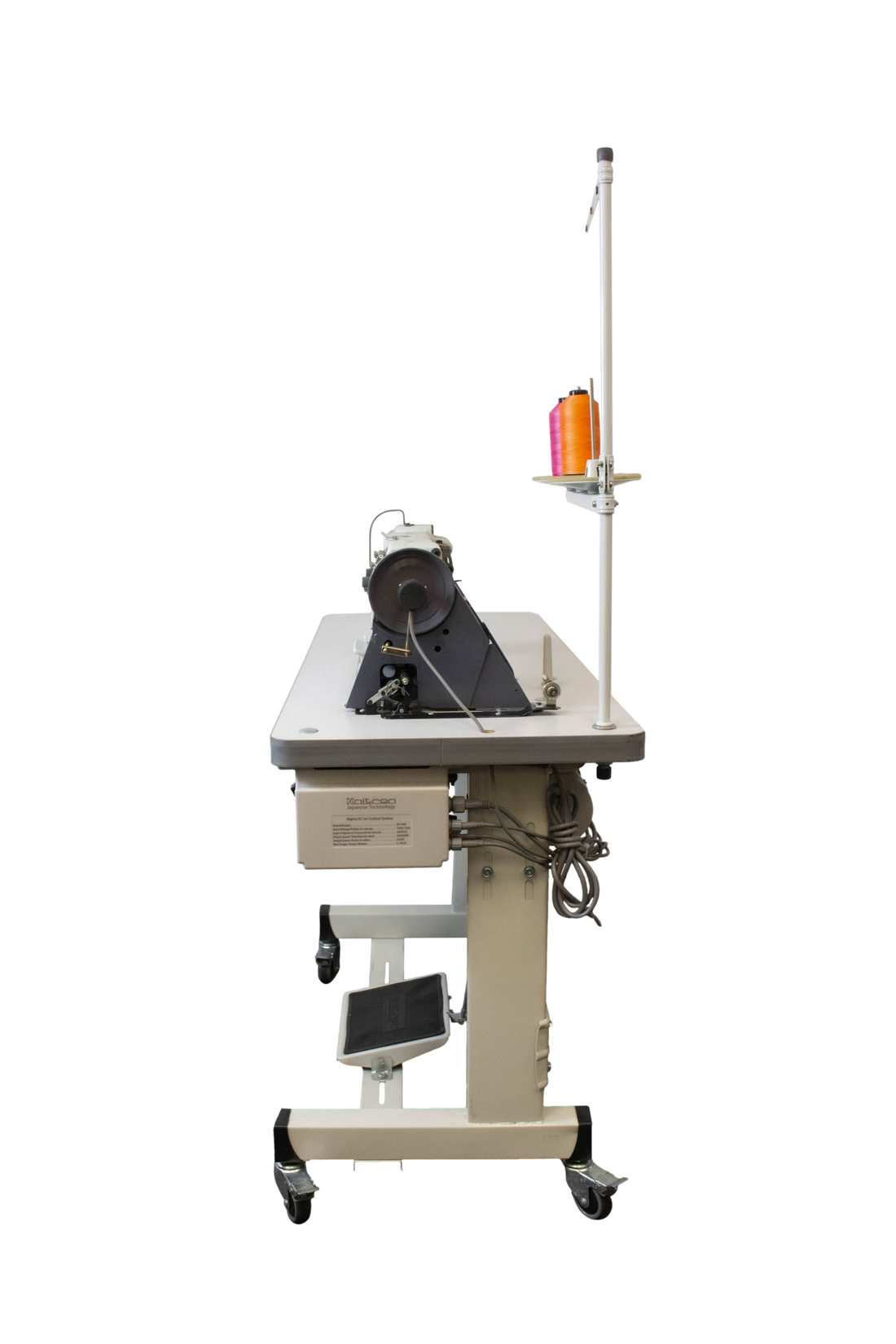

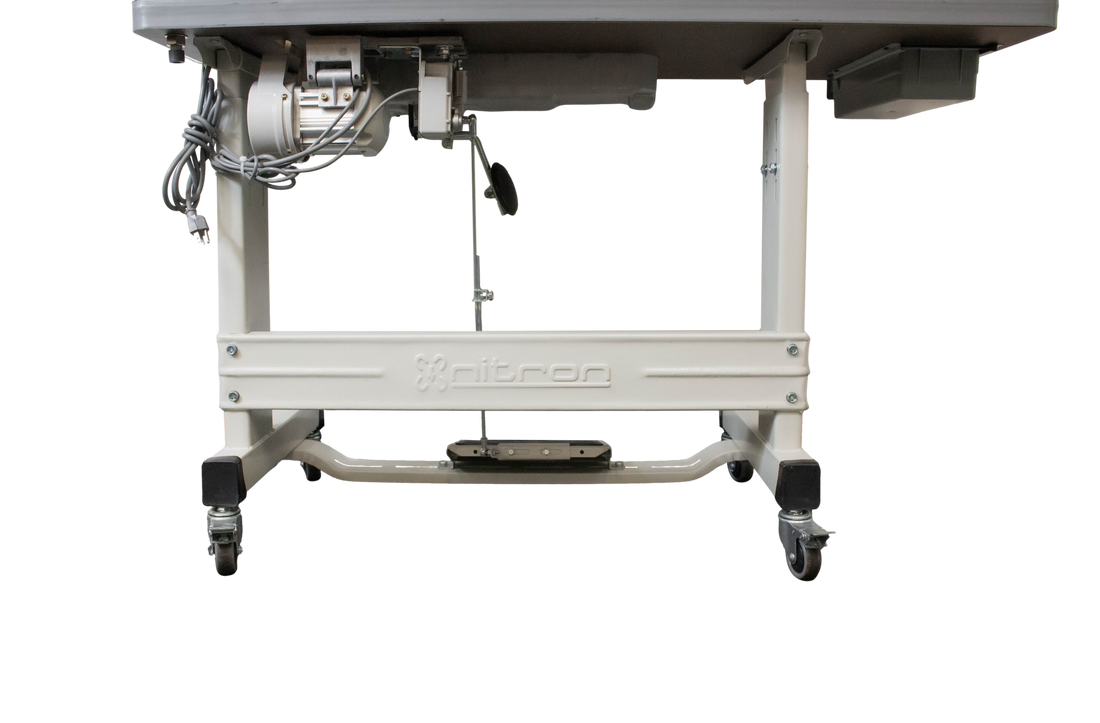

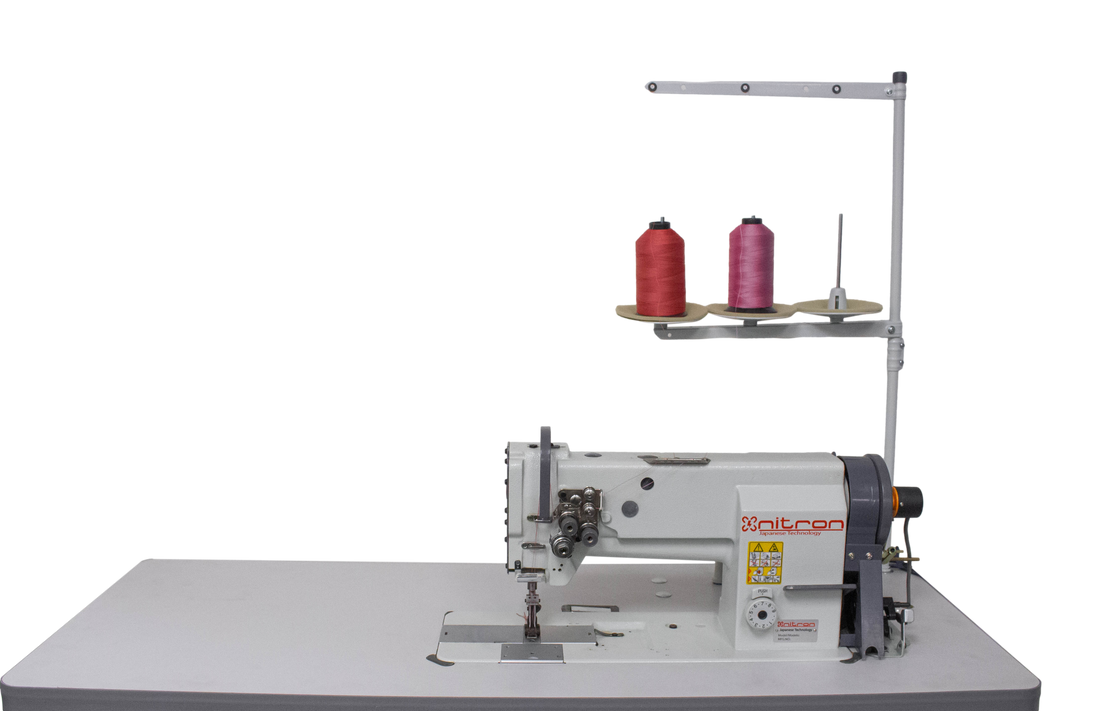

NT- 4420 HEAVY DUTY DOUBLE NEEDLE WALKING FOOT MACHINE
$1,450.00
- Description
This model adopts straight twin-needle and two horizontal hooks with auto lubrication for thread looping, sliding level for thread take up to form two lines of lock stitch seam. The upper shaft and lower shaft are connected by ball bearing and driven by a teeth-type synchronic belt: plunge oil pump lubrication system. The machine adopts the compound feed mechanics of feed dog, needle bar, and presser foot, even for long stitch and long material, they can deal; with them freely. They are widely used in factories of suitcases, tents, cushions, leather goods, apparel, mats, etc...
SPECS:
- APPLICATION: MEDIUM AND HEAVY-DUTY MATERIALS
- MAX. SEWING SPEED: 2000SPM
- MAX.STITCH LENGTH:9MM
- NEEDLE BAR STROKE:36MM

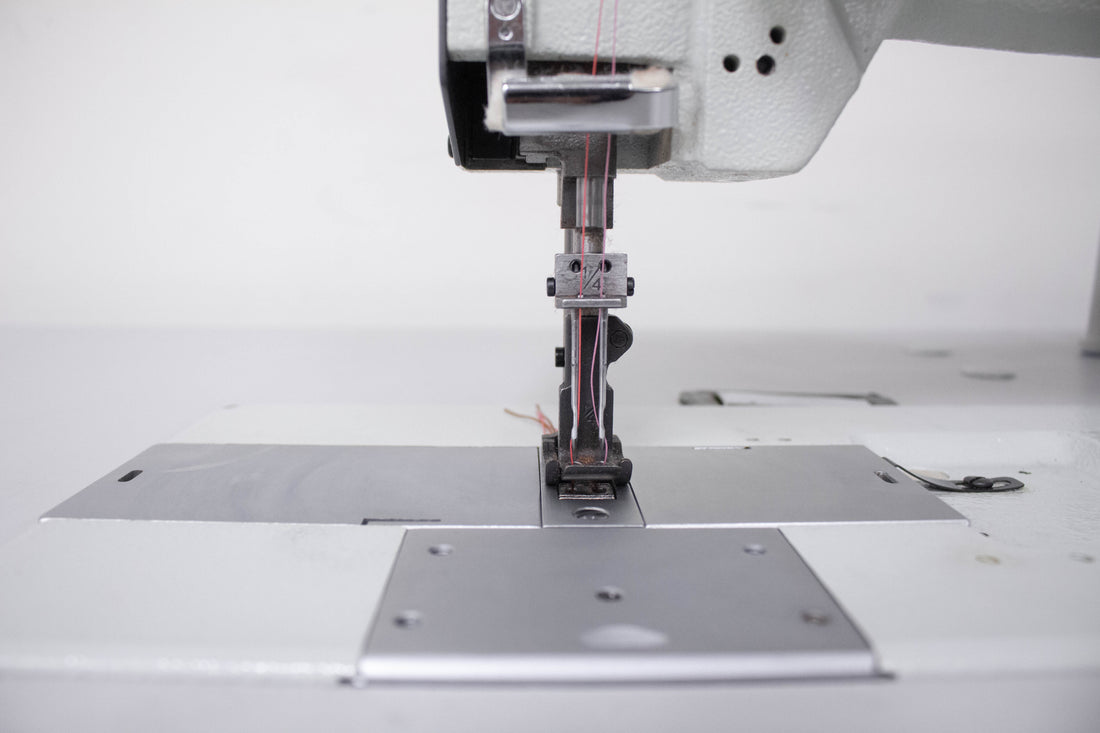

- PRESSER FOOT LIFT HEIGHT: 8MM (BY HAND): 16MM (BY KNEE)
- HOOK: LARGE HORIZONTAL HOOK WITH AUTO LUBRICATION
- NEEDLE: DPX17 NM125~180
- LUBRICATION: PUMP AUTO LUBRICATION (PARTIAL OF MANUAL OILING)
- NEEDLE GAUGE (TWIN NEEDLE):6.4, 3.2, 4, 4.8, 8, 9.5, 12.7, 16, 19, 25.4
- MOTOR POWER: 0.37 KW (CLUTCH MOTOR)
